FREEDOMLIFT for wheel-free maintenance jobs

2-Post Lifts FREEDOMLIFT

Due to its unrivalled flexibility, the 2 Post FREEDOMLIFT provides a superior solution for lifting a wide variety of vehicles from commercial vans to small heavy-duty vehicles. The concept of the FREEDOMLIFT is ingenious and simple. The telescopic support arms allow the two post lift to be easily and quickly adjusted.

Brochure download
  • Flexible and efficient
  • Optimal workshop space
  • Lifts full safe working load with arms fully extended
  • Safe automatic arm locking
  • Independent mechanical locking system
  • Durable & robust

Operational Features

Specifications

ModelSK 2055EFASK 2055SK 2070SK 2090
Lifting capacity5500 kg5500 kg7000 kg9000 kg
Lifting height2045 mm2040 mm1980 - 1995 mm1980 - 1955 mm
Pick-up height145 mm140 mm130 - 145 mm130 - 145 mm
Min. single telescopic arm970 mm970 mm
Max. single telescopic arm1610 mm1610 mm
Min. double telescopic arm495 mm900 mm900 mm900 mm
Max. double telescopic arm1430 mm1835 mm1940 mm1940 mm
Lifting time 39 sec39 sec58 sec58 sec
Lifting capacity5500 kgLifting height2045 mmPick-up height145 mmMin. single telescopic armMax. single telescopic armMin. double telescopic arm495 mmMax. double telescopic arm1430 mmLifting time 39 sec
Lifting capacity5500 kgLifting height2040 mmPick-up height140 mmMin. single telescopic armMax. single telescopic armMin. double telescopic arm900 mmMax. double telescopic arm1835 mmLifting time 39 sec
Lifting capacity7000 kgLifting height1980 - 1995 mmPick-up height130 - 145 mmMin. single telescopic arm970 mmMax. single telescopic arm1610 mmMin. double telescopic arm900 mmMax. double telescopic arm1940 mmLifting time58 sec
Lifting capacity9000 kgLifting height1980 - 1955 mmPick-up height130 - 145 mmMin. single telescopic arm970 mmMax. single telescopic arm1610 mmMin. double telescopic arm900 mmMax. double telescopic arm1940 mmLifting time 58 sec

Flexibility

Due to its unrivalled flexibility, the 2-post FREEDOMLIFT provides a superior solution for lifting a wide variety of vehicles from commercial vans to small, heavy duty vehicles. The concept of the FREEDOMLIFT is ingenious and simple. The telescopic support arms allow the 2 post lift to be easily and quickly adjusted.

Maximum flexibility is provided by the FREEDOMLIFT models with double telescopic arms.

2-Post lift

Modern Design

The FREEDOMLIFT’s modern design has resulted in a very stable 2-post lift with a baseless construction and an absence of any rigid overhead cross-bars. This means that the FREEDOMLIFT 2 post lift can be fitted in almost any workshop. The mechanic has unhindered, optimal access to the raised vehicle.

Optimal Workspace

Different arm configurations can be chosen for various widths between the columns. A wide range of adaptors are available, providing the versatility to work on different types of vehicles.

Lifting capacities up to 9 tons

The FREEDOMLIFT 2 post lift range consists of three models with capacities from 5.5 tons to 9 tons. Various arm configurations are possible.

  • SK 2055: max. lifting capacity 5.5 tons
  • SK 2070: max. lifting capacity 7 tons
  • SK 2090: max. lifting capacity 9 tons



SK 2055EFA

The SK 2055EFA offers maximum flexibility due to its double telescopic arms and hinged elbow joints which provide more extensive reach and is suitable for personal vehicles and larger commercial vans.

SK 2055

The FREEDOMLIFT models SK 2055 is ideal for heavy pickup trucks and small vans. The SK 2055 2-post lift can lift a total of 5500 kg in 39 seconds.

The independent mechanical locking system engages at 210 mm from floor level.

SK 2070

SK 2070 2-post lift is available with single telescopic and double telescopic lifting arms. The SK 2070 2-post lift can lift a total of 7000 kg in 58 seconds. The independent mechanical locking system engages 210 mm from floor level. The lift is ideal for vans and recreational vehicles

SK 2090

SK 2090 2-post lift is available with single telescopic and double telescopic lifting arms. The SK 2090 2-post lift can lift a total of 9000 kg in 58 seconds mechanical locking starts 210 mm from floor level. The lift is ideal for larger recreational vehicles and small trucks.

Models Selection

  • SK 2055EFA
  • SK 2055
  • SK 2070
  • SK 2090

Single or Double

The FREEDOMLIFT is available with single and double telescopic lifting arms or a combination of both, as well as the extended flexible arm version (EFA).

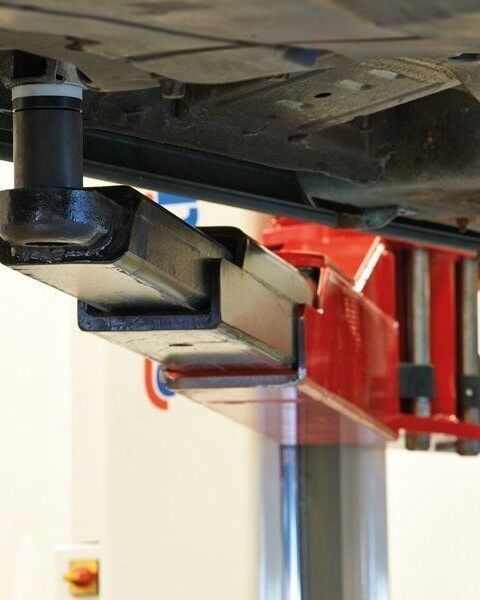

Automatic arm locking

The FREEDOMLIFT 2 post lift models with single and double telescopic arms have automatic arm locking for added working convenience and safety:

  • Special arm-release handles on the single and double telescopic arms enable easy manual and precise positioning of the lifting arms when the arms are elevated from the floor and close to the pick-up points**
  • The automatic arm locking system is reliable and requires low maintenance


** does not apply to SK 2055EFA





Extended Flex Arms (EFA)

The SK 2055EFA 5.5t 2 post lift offers maximum flexibility due to its double telescopic arms and hinged elbow joints, thus suitable for personal vehicles and larger commercial vans.

Extensively tested reliability

The FREEDOMLIFT’s hydraulic system has a minimum of moving parts and has been tested with more than 20,000 lifting and lowering cycles at maximum lifting capacity. These test results guarantee extensive and safe use in the workshop.

All FREEDOMLIFT models are approved by official inspection authorities:

  • CE certified (Europe)
  • ANSI/ALI-ALCTV certified (USA)
  • CSA certified (Canada)



Stability by means of sophisticated design

The FREEDOMLIFT's stability and safety has been enhanced by innovative design with sophisticated construction and intelligent technology. The 2-post lift and lifting arms are slender but strong at the same time. Various automatic features - both mechanical and hydraulic, ensure maximum safety:

  • Intelligent synchronisation by means of proportional control valves
  • Independently mechanical locking system engages at 210mm above floor.
  • Locking pawl engaged by gravity. The locking system is always active even when the 2-post lift is turned off with locking increments of just 35mm
  • Automatic overload protection
  • Ergonomic design with no sharp edges
  • Compact foot plates minimise the risk of tripping
  • Automatic limiter when highest position is reached
  • Hold-to-run buttons on the control panel

Find more information in our brochure

Ergonomic control panel

The specially designed FREEDOMLIFT control panel allows for ergonomic operation and is equipped with an integrated switch for the optional LED lighting.

Reliable electro-hydraulic system

The hydraulic cylinders are extensively tested and mounted in the posts so they are fully protected from dirt and moisture.

Flexible with ample working space

The robust FREEDOMLIFT 2-post lift is efficiently designed; threshold and rigid top-beamfree with compact foot-plates resulting in an optimal working space for the mechanic.

Good return on investment

The FREEDOMLIFT is the new standard in flexibility, ergonomics, safety and reliability. Stertil-Koni products are produced from high quality materials, meaning low-maintenance costs throughout the life-time of the lift.

Convenient installation

Installation of the FREEDOMLIFT is easy and quick due to the height of the posts, the effective design of the base-foot plates on almost any standard workshop floor.

Durable 2 post lift
