Easily accessible even for low clearance vehicles

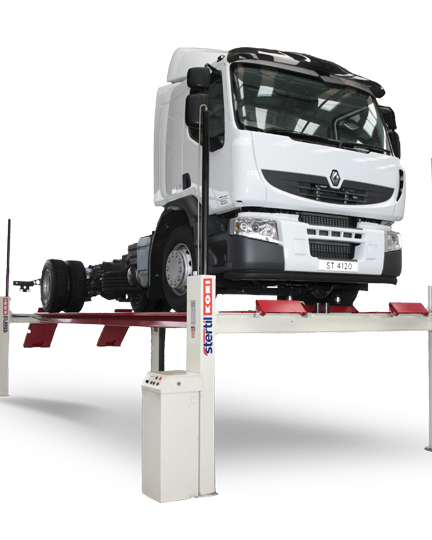

4-Post Lift ST4120 with 12t capacity

The ST4120 Four Post Lift is especially suitable to accommodate vans, trucks and forklift trucks. An optional third platform is available for lifting
3-wheel forklifts. The adjustable platforms are available from 4.5m up to 10m in length.

Brochure download
  • Optimum accessibility
  • Platform lengths available from 4.5 up to 10 metres
  • Space saving design
  • Adjustable platform width
  • Independent mechanical lock

Operational Features

Specifications

ModelST4120
Lifting systemHydraulic
Lifting capacity 12,000 kg
Lifting height1890 mm
Lifting time90 sec
Platform lengths available4.5 - 6.2 - 8.0 - 10.0 metres
Motor 5,5 kW
Lifting systemHydraulicLifting capacity 12,000 kgLifting height1890 mmLifting time90 secPlatform lengths available4.5 - 6.2 - 8.0 - 10.0 metres Motor 5,5 kW

Space saving design

The space-saving design provides optimum accessibility to the vehicle underside and takes up minimal space in the workshop.



Four Post Lift

Easily accessible

With an extremely low drive-on height of 245mm a wide range of low-clearance vehicles can easily drive onto the lift platforms.

ST 4120 short

The shortest 4.5 m version is often used for lifting forklifts.  There is even a third platform for 3-wheel forklifts available.

ST 4120 long

With a 10 metre platform length longer vehicles can be lifted. If you require more length you can set-up a tandem configuration

  • ST 4120 short
  • ST 4120 long

Easy installation

With fewer moving parts the lift is easier and quicker to install, therefore reducing costs.

It is possible to install the lift either surface-mounted or recessed.



The Ultimate Liberty of Heavy Lifting
