From light to heavy commercial vehicles

4-Post Lifts 5.5t & 7t

The Stertil-Koni compact 4-post vehicle ramps are very versatile for maintenance and servicing. The compact 4 post lifts are specifically developed for the new generation of long commercial vans and light freight trucks. Even in smaller workshops the mechanic has ample working space under the lift. The system is fitted with two hydraulic cylinders

Brochure download
  • Unique drive-on height
  • Compact space saving design
  • Wide adjustable platforms
  • Low drive-on height for easy access onto the platforms
  • Adjustable lowering speed for safe and controlled lowering

Specifications

ModelST 4055ST 4070
Lifting system HydraulicHydraulic
Lifting capacity 5,500 kg7,000 kg
Lifting height 2,030 mm2,030 mm
Lifting time31 seconds39 seconds
Platform length5125 mm5725 mm
Lifting system HydraulicLifting capacity 5,500 kgLifting height 2,030 mmLifting time31 secondsPlatform length5125 mm
Lifting system HydraulicLifting capacity 7,000 kgLifting height 2,030 mmLifting time39 secondsPlatform length5725 mm

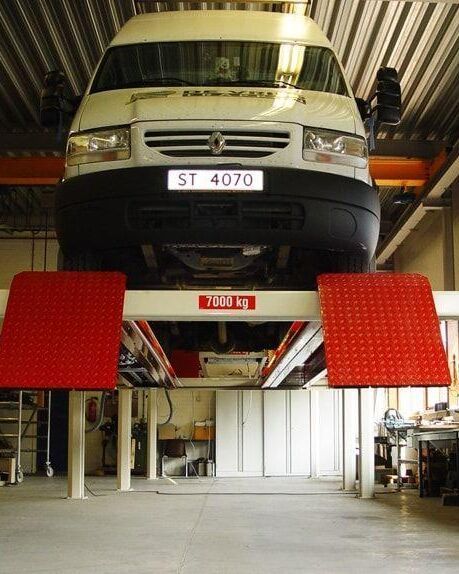

Wide adjustable platforms

An extremely low drive-on height of only 160mm guarantees that vehicles with low ground-clearance can be driven onto the platforms without grounding.

This low drive-on height means that short drive on ramps can be used, leading to more space available for moving vehicles around in your workshop.

4 post lift

Adjustable lowering speed

All models are standard equipped with an adjustable lowering speed valve. Now the vehicle on the lift can be lowered onto e.g. axle stands or transmission jacks.

Universal design

Thanks to the wide variety of lengths and widths of these 4-post vehicle lifts, Stertil-Koni always has a platform suited to your workplace or your vehicle programme.

Space saving design

With its compact design the lift can fit in almost any kind of workshop. A low drive-on height in combination with the short drive-on ramps makes these Four Post Lifts easily accessible.

ST 4055

5.5t lifting capacity

ST 4070

7.0t lifting capacity

  • ST 4055
  • ST 4070

Four Post Lift

Four Post Lift

Very stable

Thanks to the special design incorporating columns, cross-beams and tracks, the ST 4055 and the ST 4070 are very stable vehicle lifts.

There is maximum space between the columns, due to their slim profile and special design. This makes it easier to drive on wide vehicles and guarantees optimum access.

4-Post Lift

4-Post Lift

Maximum lifting height

The unique lifting height of more than 2 metres is reached in a very short time. This means that even tall mechanics can work upright under the vehicle.

The rate of descent can be manually controlled, making it easy to position the vehicle on axle supports and transmission jacks.

Operational reliability

The Stertil-Koni 4-Post lifts are renowned for their reliability, long lifespan and high resale value. Stertil-Koni vehicle lifts are designed for intensive and problem free use.

All models were tested during their development with a minimum of 50,000 lifting cycles under a full load.

Optimal access

The 630mm wide tracks make these 4-post vehicle lifts ideal for commercial vans and light freight vehicles with twin wheels.

The adjustable track guarantees maximum freedom of movement under the vehicle.

5.5t Four Post Ramp

The Ultimate Liberty of Heavy Lifting
