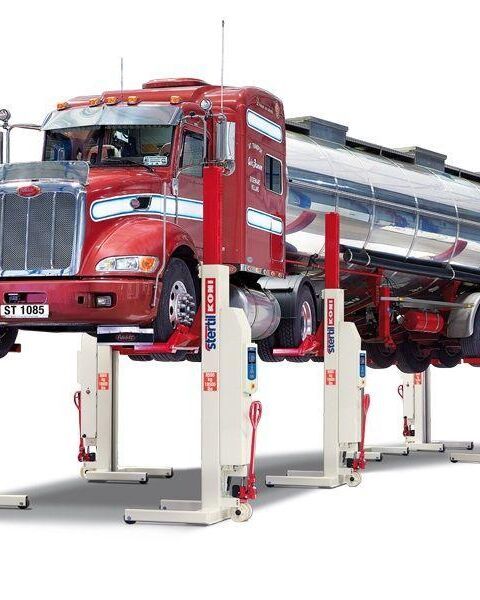

Ideal for busy workshops where the vehicle lifts need to be frequently relocated. Stertil-Koni mobile column vehicle lifts are fitted with the intuitive Stertil-Koni ebright Smart Control System making operation and positioning of the lift simpler than ever. Using the innovative owner ID key, it is possible to connect up to 32 columns in one configuration. Capacities for the individual mobile column vehicle lifts range from 6.5t up to 17.5t.
| Model | ST1065 - 6.5t | ST1075 - 7.5t | ST1085 - 8.5t | ST1100 - 10.0t | ST1130 - 13.0t | ST1175 - 17.5t |
|---|---|---|---|---|---|---|
| Lifting Capacity (kg) | 6,500 | 7,500 | 8,500 | 10,000 | 13,000 | 17,500 |
| Fork type | Fixed | Adjustable | Adjustable | Adjustable | Fixed | Fixed |
| Fork Length (mm) | 500 | 350 | 350 | 300 | 640 | 450 |
| Fork width (mm) | 770 | 240 - 560 | 240 - 560 | 240 - 560 | 1006 | 806 |
| BROCHURE | BROCHURE | BROCHURE | BROCHURE | BROCHURE |
Stertil-Koni Mobile Column Vehicle Lifts really are truely ‘mobile’ and very easy to move around having synthetic wheels and a hydraulic pallet truck mechanism with patented overload protection built in.
Reduce any workshop floor damage with Stertil-Koni's optional retractable wheels which prevent high point loading, reducing the surface pressure by a factor 10.
The Stertil-Koni Mobile Column Vehicle Lifts reach their maximum height of 1,850 mm in just 74 seconds (7.5t model), making them one of the fastest column lifts in the world
Do you want to lower the vehicle more slowly for precise positioning of under carriage components? This is easily done via the interactive Stertil-Koni ebright Smart Control system at the touch of the screen.
For operating the mobile column lifts, Stertil-Koni offers for both Wireless and Cabled models the ebright Smart Control System:
The special deep cycle batteries only need to be recharged every two weeks on average. No time is wasted connecting up cables and the mechanic has maximum access to the vehicle, without any tripping hazards.
Various wireless capacities are available: 6.5t, 7.5t, 8.5t, 10.0t, 13.0t and 17.5t.
The wireless mobile columns are easy to charge by means of a 230V socket on each column. Learn more about the ebright Smart Control System:
If you predominantly work in a fixed location the cabled mobile column lifts may work out to be the best solution for you. Like the Wireless Mobile Column Lifts, this set-up also offers the possibility to connect up to 32 columns in a single configuration. Cabled columns lifts operate from a standard 415V supply, with other voltages available.
The cabled versions also have a lifting capacity of 6.5 tons up to 17.5 tons per column. Extra strong drive-over cables are available as an option for these cabled column lifts. All interconnection communication cables are equipped with heavy-duty plugs at both ends.
We have designed, as an extra safety feature, a large working distance between the column and the vehicle. For example, if a problem with the air suspension occurs, the vehicle will not make contact with the column.
|
Max 32 Linked Columns |
Overload Protection |
Unique Synchronisation System |
The synchronisation system is activated at a height difference of just 15 mm - this ensures safe and smooth lifting and lowering cycles, even in the event of an extremely uneven load distribution
The total lifting capacity is variable by linking multiple lifting columns together. A maximum of 32 columns can be linked in a single configuration lifting up almost every type of heavy commercial vehicle.
The innovative synthetic runner wheels within the column come with a lifetime parts guarantee.
To guarantee maximum safety in the workshop, the Stertil-Koni products have received the required certifications.
