Inground Scissor Lift for Wheel-free maintenance

Inground ECOLIFT

The Stertil-Koni Scissor ECOLIFT is the vehicle industry’s first U.S. patented, ultra-shallow, full-rise axle-engaging in-ground scissor lift not requiring any lift components being embedded in the concrete.

Available in a 2, 3 or 4-scissor configuration, total lifting capacities of 27t, 40t and 54t respectively with 13.5t per scissor.

Brochure download
  • Ultra-Shallow Economic Installation
  • Wheel-free Maintenance Solution
  • Easy Access With Continuous Recess
  • Wide Range Of Applications

Operational Features

Specifications

ModelECO60ECO90ECO120
Lifting system HydraulicHydraulicHydraulic
Lifting capacity 27,000 kg40,500 kg54,000 kg
Lifting height1,780 mm1,780 mm1,780 mm
Travel ranges movable scissor3,000 - 4,000 - 5,200 mm 3,000 - 4,000 - 5,200 mm3,000 - 4,000 - 5,200 mm
Minimum wheelbasestarting at 1220 mmstarting at 1220 mmstarting at 1220 mm
Lifting time90 seconds90 seconds90 seconds
Motor power 2x 3.7 kW3x 3.7 kW4x 3.7 kW
Lifting system HydraulicLifting capacity 27,000 kgLifting height1,780 mmTravel ranges movable scissor3,000 - 4,000 - 5,200 mm Minimum wheelbasestarting at 1220 mmLifting time90 secondsMotor power 2x 3.7 kW
Lifting system HydraulicLifting capacity 40,500 kgLifting height1,780 mmTravel ranges3,000 - 4,000 - 5,200 mmMinimum wheelbasestarting at 1220 mmLifting time90 secondsMotor power 3x 3.7 kW
Lifting system HydraulicLifting capacity 54,000 kgLifting height1,780 mmTravel ranges3,000 - 4,000 - 5,200 mmMinimum wheelbasestarting at 1220 mmLifting time90 secondsMotor power 4x 3.7 kW

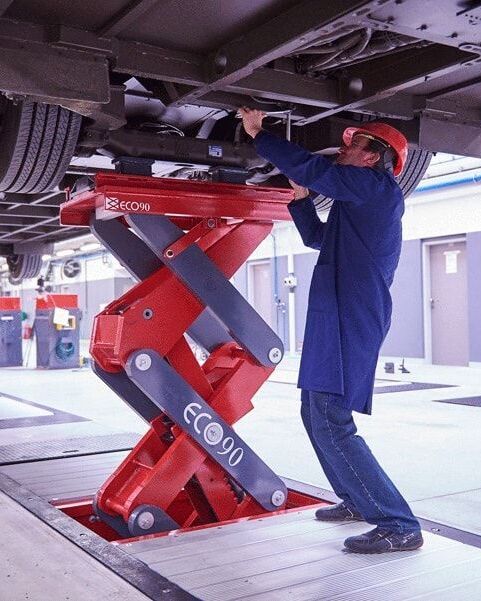

Wheel-free Maintenance

The Stertil-Koni in-ground scissor ECOLIFT is suitable for wheel-free maintenance and is very cost-effective to install. Access to the lift is optimal as the system is fully flush with the workshop floor.



inground scissor lift

ebright Smart Control System

The revolutionary ebright Smart Control System combines intuitive ease of use with maximum visual information about the lifting process.



Ultra-Shallow Construction

The ECOLIFT shallow-pit construction has a depth of just HALF of the lifting height. With an installation depth of just 0.87 m, the ECOLIFT is the answer to situations with bedrock, water table, contamination or unstable soil conditions.

Easy Installation

Not only is the installation depth extremely low, the ECOLIFT arrives on site pre-assembled and tested. ECOLIFT is a drop-in/bolt-in design, which makes the installation a breeze. Additionally, the ECOLIFT is the only re-locatable in-ground lifting system in the world.

ECO60 with 2 Scissors

ECO60 is available in three different versions. The movable scissor is available with three working ranges.

ECO90 with 3 Scissors

ECO90 has 3- scissors of which two are moveable, very suitable for multiple axle vehicles.

ECO120 with 4 Scissors

ECO120 has 4-Scissors of which three are moveable, very suitable for multiple axle vehicles for example articulated buses.

Models

  • ECO60 with 2 Scissors
  • ECO90 with 3 Scissors
  • ECO120 with 4 Scissors

Space-Saving, Continuous Recess

Utilising the Continuous Recess™ system, the ECOLIFT is designed to accommodate vehicles with extremely low ground clearances. The moveable lifting mechanism can recess below floor level anywhere within the range of travel.

The pit covers are made from anodised aluminium and are equipped with a skid resistant surface. The covers are capable of handling a wheel load of 6,000 kg as well as a point load of 3,400 kg on a 5 x 5 cm contact area, as would occur, for example, with a support stand leg.

Innovative Design

The covers are driven hydraulically with an inverted rack and pinion system, sliding on a corrosion-resistant, self-cleaning surface. An industry proven control system, with electronic synchronisation utilising real-time feedback, ensures a smooth and safe operation.

As standard, the control system includes a provision to restrict the maximum lifting height. The ECOLIFT can be supplied in a 2, 3 or 4-Scissor configuration. The available ranges of horizontal travel for ECOLIFT moveable lifting units are 3,000, 4,000 and 5,200 mm. This flexibility allows service of vehicles including articulated buses, fire and rescue vehicles as well as multiple-axle trucks.

Cost-Effective Installation & Relocation Possible

The Stertil-Koni ECOLIFT is a good, cost-effective alternative if you really want to have an in-ground in your workshop but find other in-ground lift systems too expensive, due to the high installations costs.The ECOLIFT is so versatile, that if you are moving your workshop location you can take the Stertil-Koni ECOLIFT with you, unlike most in-ground lifts which cannot be relocated as they are are permanently installed in the workshop floor.



Ready for the future

With its high lifting capacity, movable front lifting mechanism in a continuous recess and broad range of adapters, the ECOLIFT is suitable for a diverse vehicle fleet. Additionally, since the ECOLIFT is drop-in/bolt-in, it is easily relocated.

Options

  • Detachable, Wired Remote Control: Full function remote control, with emergency stop, operates in addition to standard controls on the console and is fully approved for use on the workshop floor. The result: convenient and safe positioning of the lift to the vehicle
  • Adaptors: Standard selection included. Special adaptors are available
  • Adaptor Stand: For safe and easy storage of adaptors and cover plates
  • Biodegradable Hydraulic Fluid
  • Automatic Wheel Base Positioning (AWBP): system for the moveable lifting unit, allows for pre-set programming of an endless number of vehicles, which can be saved and activated
  • Special Lift Configurations Are Available

Maximum Safety

The ECOLIFT is designed with a robust mechanical locking system, independent of the hydraulic cylinder. The mechanical locking system is active throughout the lifting range. When lowered into the locks, the vehicle is fully supported, with no pressure remaining in the hydraulic system.

The unique lifting scissors are fabricated from 5 cm thick, high strength steel, providing an unparalleled level of stability and safety.

Stertil Koni inground scissor lift

The perfect heavy duty vehicle lift for easy maintenance!
