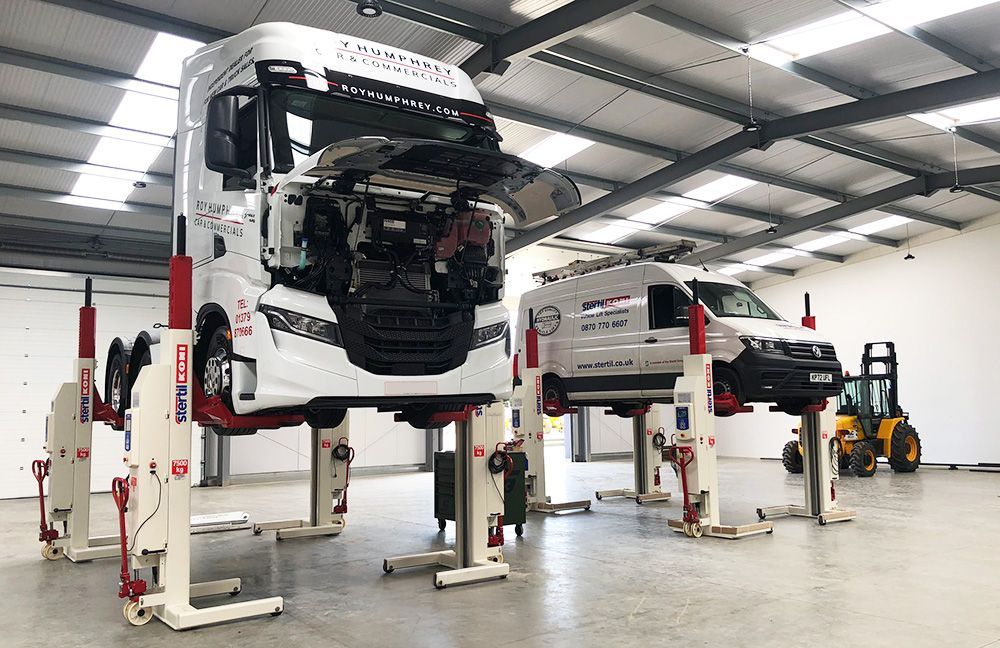

Mobile Column Buying Guide: Choosing the Right Workshop Lift

There’s a reason why mobile column lifts are so widely used across commercial vehicle workshops today.

From buses and coaches to HGVs, they offer operators a flexible and efficient way to lift vehicles safely whilst making better use of available workshop space.

But whilst many lifts can appear similar at first glance, the differences in safety design, wireless technology and long-term reliability can be significant. For this reason, it’s important to look beyond lifting capacity alone when comparing suppliers.

Here are some key considerations when choosing mobile column lifts for your workshop.

IMPORTANT SAFETY FEATURES

Safety should always be the first priority when investing in heavy-duty vehicle lifts.

After all, technicians are routinely working beneath vehicles weighing many tonnes, often carrying out inspections, maintenance and repairs that can take several hours to complete.

For this reason, the safety systems built into a mobile column lift are just as important as its lifting capacity.

Whilst many systems may look similar, manufacturers can take very different approaches to testing standards, mechanical locking systems and synchronisation control.

For example, some lifts are tested against further, more demanding international standards in addition to basic CE requirements, whilst others may rely solely on minimum compliance with local standards.

Locking systems can also vary considerably, with some manufacturers offering locking positions spaced at 35mm compared to 75mm or even 100mm on other systems.

Similarly, synchronisation performance can range from lifts that respond to height differences of just 15mm between columns to those that only react once the difference becomes significantly greater.

When comparing mobile column lifts, look out for:

• Independent mechanical locking systems
• ANSI/ALI-certified testing (in addition to CE)
• Lock intervals as small as 35mm
• Synchronisation correction from 15mm


UPFRONT COST VS. LONG-TERM VALUE

When comparing mobile column lifts, it can be tempting to focus on upfront cost.

However, the true value of a set of column lifts is often determined over many years of workshop use.

Lower-cost systems often achieve their pricing advantage through simplified control systems, less advanced safety features or lower-specification components.

On top of that, factors such as reliability, maintenance requirements and service support can have a significant impact on lifetime ownership costs. In other words, the cheapest option isn't always the most economical in the long run.

When assessing overall value, consider:

• Long-term reliability
• Quality of construction
• Safety redundancy features
• Service and support
• Total cost of ownership


WIRELESS TECHNOLOGY

Wireless mobile column lifts have transformed workshop flexibility by removing trailing cables and reducing trip hazards.

However, not all wireless systems communicate in the same way.

Some advanced systems use wireless mesh networking technology, where every column continuously communicates with the others. Rather than relying on a single communication route, this creates multiple pathways across the lift set, helping maintain stable synchronisation and reliable operation.

Additionally, some wireless lifts incorporate a disconnection switch within the pallet-jack mechanism. This means that if a column is moved, it automatically disconnects from the lift set, providing an additional layer of safety.

When evaluating wireless lifts, ask about:

• Mesh networking technology
• Battery performance
• Automatic disconnection features
• Real-time system monitoring
• Touchscreen control systems


EASE OF USE

Small design details can make a significant difference to productivity over the lifetime of a mobile column lift.

Features that improve manoeuvrability and ease of operation can help technicians work more efficiently whilst reducing the risk of accidental damage.

Integrated pallet truck mechanisms and maintenance-free synthetic runner wheels, for example, can make it easier to position columns around the workshop.

Vehicle-to-column clearance is another area where designs can vary. Greater clearance between the tyre and column can help reduce the risk of bodywork damage should a tyre deflate whilst the vehicle is raised.

Look for features that improve:

• Ease of manoeuvrability
• Workshop efficiency
• Technician usability
• Vehicle protection
• Precision lifting and lowering


OPTIONAL ACCESSORIES

Accessories and adapters can significantly expand the range of vehicles and components that can be lifted. Crossbeams, forklift adapters, and trailer king pin adapters can help workshops support a broader mix of vehicle types without investing in additional lifting equipment.

As many workshops continue to diversify, flexibility is becoming an increasingly important part of the buying decision.

Consider the availability of:

• Crossbeams
• Forklift adapters
• Trailer king pin adapters
• Future upgrade options


QUESTIONS TO ASK BEFORE BUYING MOBILE COLUMN LIFTS

Before making a final decision, operators should take time to compare suppliers properly.

Asking the right questions can reveal the key differences between mobile column lifts:

• What safety standards has the lift been tested against?
• What is the spacing between mechanical locking positions?
• How quickly does the system respond to column height differences?
• Does the wireless system use mesh networking technology?
• What accessories are available to support future workshop requirements?
• What service and support is available?

CHOOSING THE RIGHT COLUMN LIFT

Selecting mobile column lifts is about far more than lifting capacity alone.

Safety systems, synchronisation accuracy, wireless reliability, ease of use and long-term support all play an essential role in protecting technicians and maximising workshop productivity.

So if you’re still not sure which system is right for your workshop, contact our expert team of lift specialists, who’ll discuss your options to find the right column lift for your workshop.

Contact Stertil-Koni on 01604 662049, or email lifts@stertil.co.uk.
